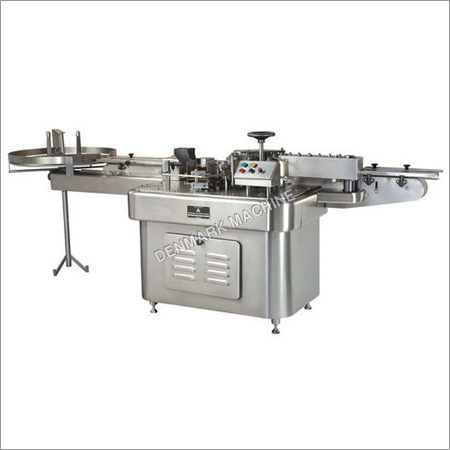

Wet Glue Labelling Machine

Wet Glue Labelling Machine
Wet Glue Labelling Machine
Product Code : DHL-150
Brand Name : Denmark
Product Specification

Wet Glue Labelling Machine

Owing to our rich industrial expertise and skills, we are renowned as one of the most profound manufacturers, exporters and suppliers of Wet Glue Labelling Machine. Manufactured using premium quality raw materials, these labeling machines are designed and developed by experienced engineers as per the industry set guidelines & standards. This Wet Glue Labelling Machine is widely acknowledged for its significant attributes such as low maintenance, long operational fluency and corrosion & rust proof surface finish.

Specifications

 DESCRIPTION



DHL-150 automatically labels round container of glass, plastic, aluminum, pet, cardboard container, will wrap-around labels in the vertical position by using cold glue. DHL-150 is rigid, versatile and engineered for reliability and enhance operational efficiency in addition, it has several exclusive features which offer additional advantages.



OPERATION



The round containers positioned accurately by the feed worm for wrap-around operation at the labeling point, the rotating glue cylinder receives cold glue from glue pot that subsequently gets transferred on the Glue Rubber Roller. Finally a fine, even and thin film of glue is transferred to the gluing pad. The round container on the moving conveyor at the feed worm actuates a sequence, which result in the oscillation of the Label Box. The rotating Label Master aligned with the help of pick up fingers from the Label Master & with oscillating Label Box. The pick up cylinder receives labels with the help of pick up fingers from the label master. The pick up cylinder holds the labels perfectly with due to vacuum during its rotational movement. Simultaneously the pick-up fingers move inside, The round container moves on conveyor with the help of worm and glued label on pick-up cylinder wrapped around to container by virtue of strip belts.Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.



TECHNICAL SPECIFICATION



Model No

DHL - 150

Direction of Movement

Left to Right

Output per Hour

3600 to 9000 Nos. Depending on container Size and Label Size.

Electrical

Main Motor

0.75 HP / 415 Volts / 50 Hz.

Specification

Vacuum Pump

0.5 HP / 415 Volts / 50 Hz.

Height of Conveyour-

860 mrn to 910 mm

Machine Dimension-

3010 mm (L) x 1016 mm (W) x 1170 (H) mm

Gross Weight

750 kgs.

Change Parts Required

(A) Container: Feed Worm.



(B) Label : Label Muster, Upper - Lower Plate, Pusher Plate,

INPUT SPECIFICATION



Length

20 mm to 140 mm

Label

Height

16 to 90 mm

Specification

Thickness



65 to 70 GSM (The Direction of Gains of the Label must always be parallel to the container axis. The paper should be flexible.)

Container

Round Shape

Size

Ø16 mm to Ø 100 mm

Respectively Height 40mm x 240 mm (Height option for other bottle height available)



SALIENT FEATURES



  • All exposed parts of the unit are of S.S, hard chromed or SS cladded to ensure long life and resistance against corrosion.
  • Adjustable Conveyor Height to align with other machine of the line.
  • Minimum changeover time is required from one size of container or label to another.
  • Special self-aligning bearing ensure smooth and trouble free rotation of the parts.
  • These self-aligning bearings help in quick assemble during periodical maintenance of the unit They also allow more flexibility in maintaining tolerances.
  • No container, No label, an electrical sensing device avoids wastage of labels, it also
    helps in keeping the unit neat & clean.
  • Suitable for overlap labeling and flag type labeling where the length of label is more
    than the circumference of container.
  • A highly efficient vacuum pump develops sufficient vacuum to hold labels big or small on the pick-up cylinder.
  • Complete protection of the motors is ensured by the contactors and relays of appropriate ratings.

Note : We reserve the right to change Specification without prior notice.
